Products Made in Finland
Radiomaster specializes in the manufacture of antennas, non-standard electronic, electrical and EMC devices.
Parus-2X tactical military antenna for NATO Band 1
Wideband directional panel antenna covers the frequency band from 225 MHz to 400 MHz.
The original design allows the antenna to be installed not only on a mast but also directly on any surface. To communicate with a satellite or an aerial object, it is enough to simply place the antenna on the ground. The antenna does not contain aluminum parts. Built-in antenna heating is available to prevent icing in severe climate conditions.
Usable Frequency Range: 200 – 420 MHz
Polarisation: linear
Pattern Type: directional
Gain: 10 - 13 dBi
3 dB beamwidth 62º - 66º
Impedance: 50 Ω nominal
VSWR: typ. < 1.5:1
Max Power: 500 W
Connector: Type N female
Antenna radiator material: Copper pipe
Reflector and mounting material: for model 22 - stainless steel for model 21 - galvanized steel
Length: 0.36 m
Reflector dimensions: 1.1 m * 0.6 m
Measured VSWR:
Parus-3X broadband directional panel UHF antenna for TETRA and communication systems
Wideband directional UHF antenna covers the frequency band from 330 MHz to 512 MHz.
The original design allows the antenna to be installed not only on a mast but also directly on any surface.
The antenna does not contain aluminum parts. Built-in antenna heating is available to prevent icing in severe climate conditions.
Usable Frequency Range: 300 – 570 MHz
Polarisation: linear
Pattern Type: directional
Gain: 10 - 13 dBi
3 dB beamwidth 62º - 66º
Impedance: 50 Ω nominal
VSWR: typ. < 1.25:1
Max Power: 500 W
Connector: Type N female
Antenna radiator material: Copper pipe
Reflector and mounting material: for model 32 - stainless steel for model 31 - galvanized steel
Length: 0.24 m
Reflector dimensions: 0.9 m * 0.6 m
Measured VSWR:
Parus broadband directional antennas and antenna systems
Design, building installation, modification and adjustment of communication antennas, antenna systems and cable networks for the customer's frequency and task.

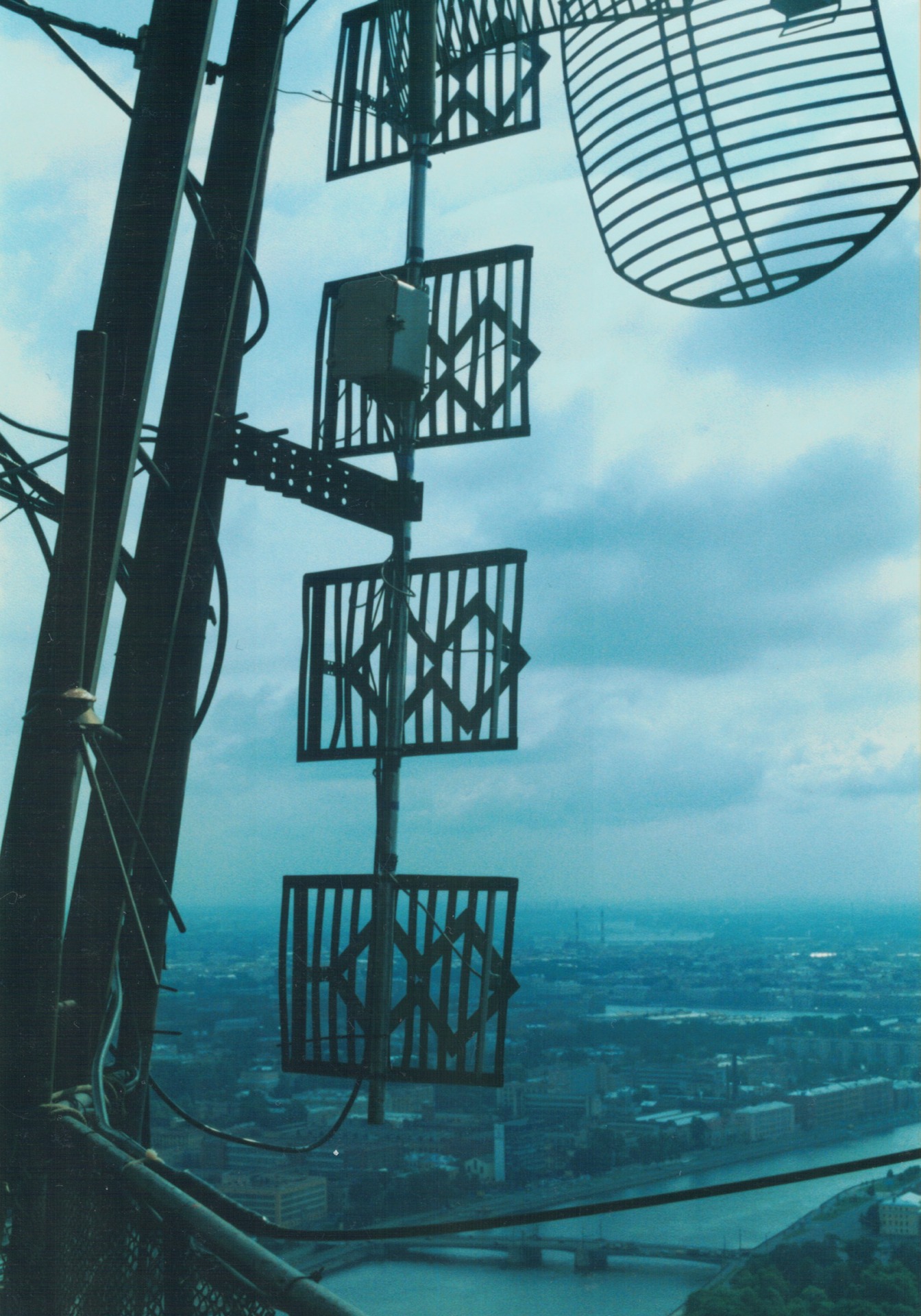

Base Station Antennas
Please contact us: info@radiomaster.fi
Trailer Light Scanner
Trailer light tester YZ-25 makes the job of trailer light testing a lot faster and easier since it powers your trailer's lighting circuits in sequence. You check the operation of all lighting functions in a single walk-around instead of two or three.
Operates lights in sequence. Switching modes: manual or automatic with adjustable duration.
The tester is custom-made. The case and battery that are most convenient for the customer's conditions are selected and agreed upon with the customer. For example, it is possible to use from the power tools available in the customer's workshop.
Price: 410 EUR excluding case and battery

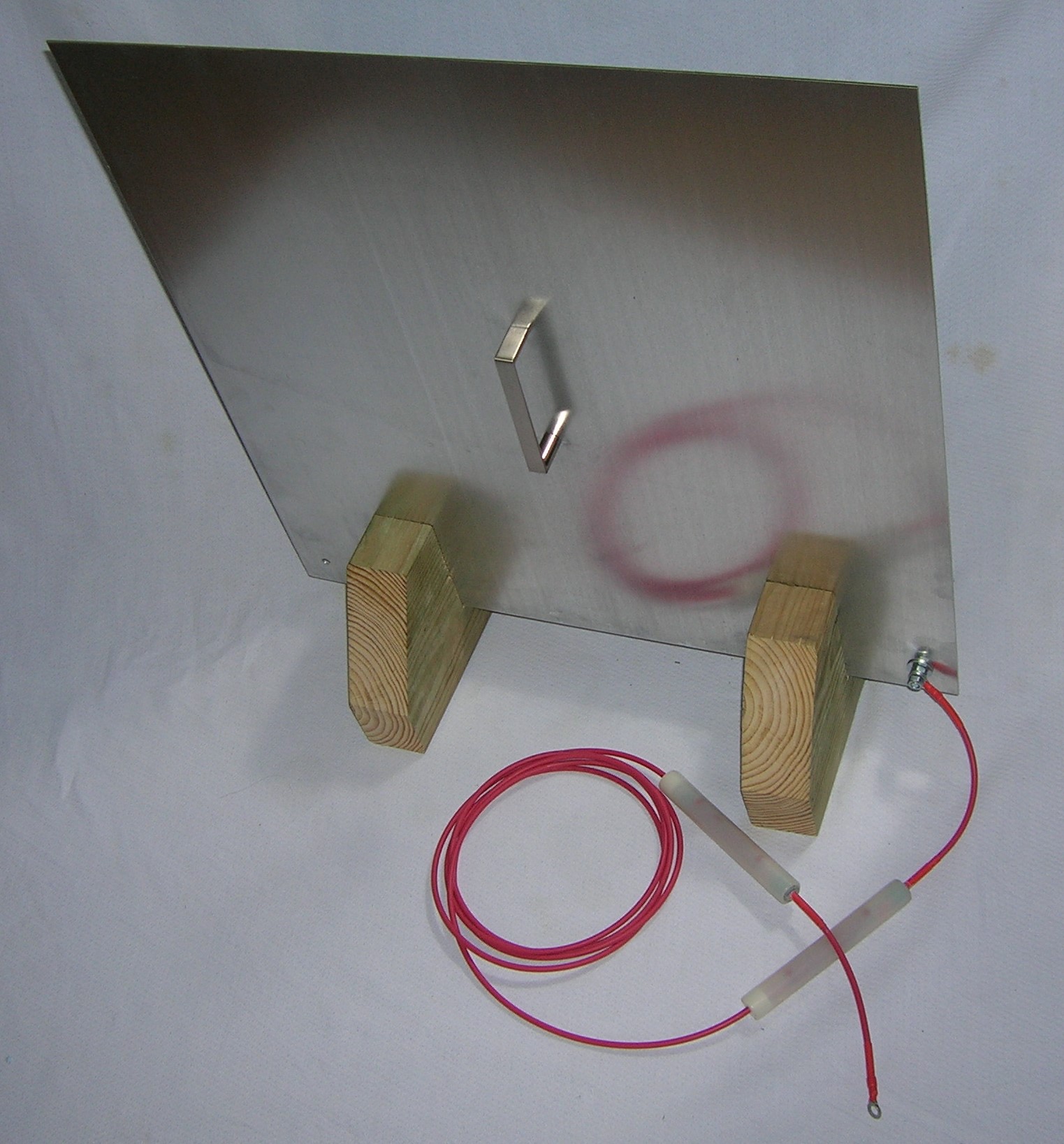

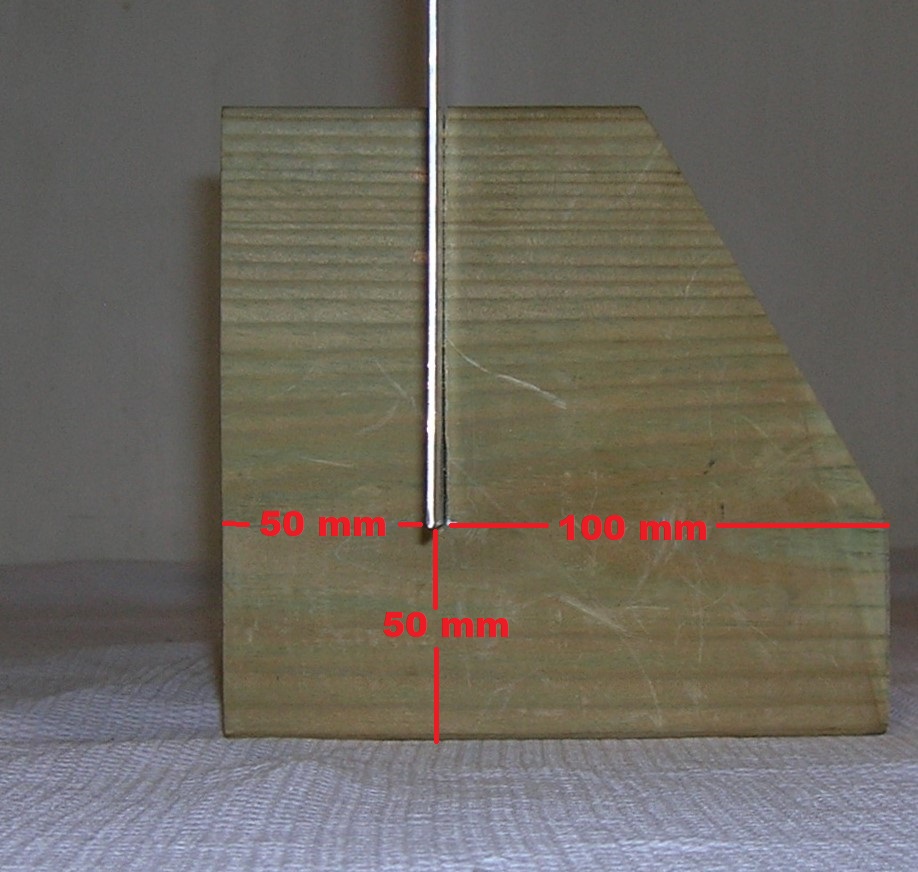

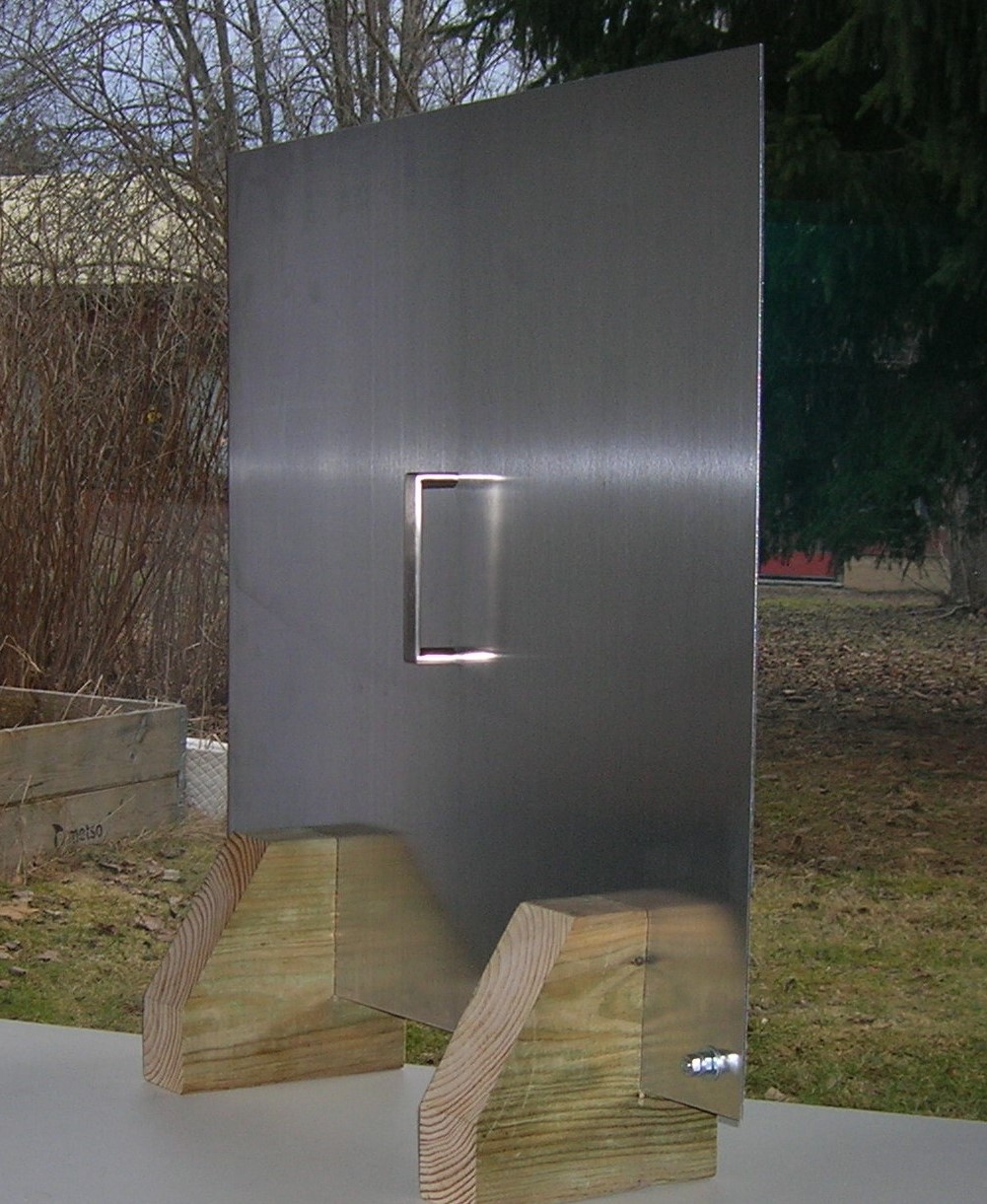

VCP ESD testing fixture.
Vertical coupling plane IEC 61000-4-2
EMC Test Equipment Accessories
ESD Immunity Test Environment
The VCP is a vertical coupling plane 0.5 m x 0.5 m, for indirect application of the ESD immunity tests according to IEC/EN 61000-4-2

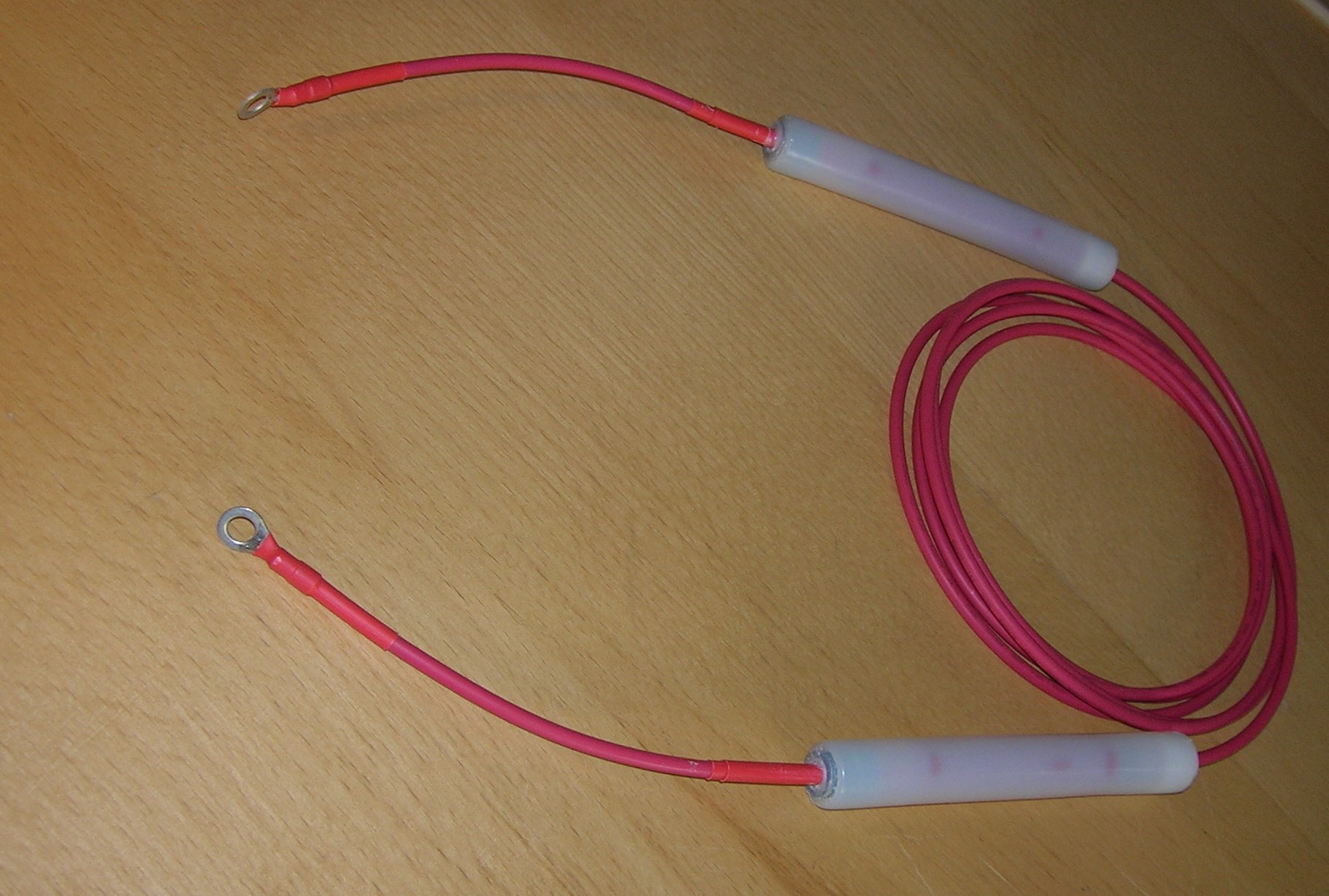

Resistive Charge Cable / Voltage Bleeding Cable
2 m Ground Cable with 2 470k Ohm resistors for voltage bleeding is included
Price: 480 EUR
Custom-made electronic and electrical device
A budget solution to the customer's problem.
If standard, off-the-shelf equipment for a specific task is excessive, expensive, or unavailable, if this creates a Brand Compatibility issue,...
Please contact us: info@radiomaster.fi
